Product Overview:

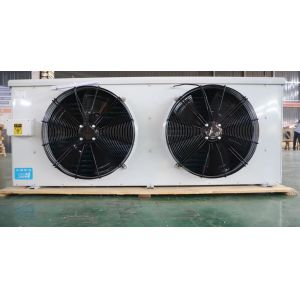

EA series commercial angle-type air cooler is designed with compact structure, blowing motor, of which the fans are
installed on the beveled surface; it is compact to make better use of the space in cold stores, which is mainly used for
those smallsized cold stores with small storage spaces.
This series of products has the following characteristics:
1. Enclosure: Made of aluminum magnesium plate sprayed with powder coating(silver gray RAL9006), lightweight;
2. The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect the copper tube and
reduce the weight;
3. Double water tray design: The outer water tray is designed with hinge structure, which is convenient for operation; the
inner water tray is designed with sink structure made of aluminum plate, and the condensed water or defrost water is
directly discharged into the drainage outlet of the outer water tray through the inner water tray;
4. Coil: Tube spacing 38.1 X33 in triangle arrangement, with high heat exchange efficiency;
5. Corugated aluminum sheet made of hydrophilic aluminum foil, with the sheet spacing of 4.0mm and 6.0mm to meet
the requirements of different cold stores;
6. Fan; External rotor fan with blowing air,operating temperature:-30-60°C,fan specification: b300, and quantity of
fans: 1-4 units;
7. Defrosting: The electric defrosting is adopted in the standard manner, and the stalnless steel heating tubes are
distributed in the coilfins and the inner water tray, which can bring about desirable defrosting effect;
8. The lp65 waterproof junction box and waterproof connectors are used, with better waterproofing;the fan and the
heating pipe are vwired separately, which can lead to high reliability,
9. The outlet of the air cooler is equipped with a needle valve, which is convenient for users to test the pressure;
10. It is subjected to strict factory pressure test at the pressure of 23bar;
11. Theexpansion valves and other parts can be pre-installed according to customer's needs;
12. It is compatible with R404A,R507A,R448A, R449A,R134a, R22 and otherrefrigerants.

Zhejiang kaidi refrigeration equipment co.,ltd was established in 1995.It is a refrigeration equipment manufacturing company integrating research and development, processing and manufacturing, sales and commissioning services. The company is headquartered in Cangzhou City, Zhejiang Province. The company covers an area of 50,000 square meters. It has more than 30,000 square meters of modern factory buildings and more than 6,000 square meters of offices. It is equipped with advanced CNC processing equipment and high-standard testing laboratories. The company has a senior professional technical team and an experienced manufacturing team.

Since its establishment, the company has passed the ISO9001 quality management system certification, and has obtained industrial product production licenses and special equipment manufacturing licenses of the People's Republic of China (pressure vessels D1, D2). At present, the company's products mainly include air coolers, air-cooled condensers, shell and tube evaporators, shell and tube condensers, fully enclosed / semi-closed / screw compression condensing units, integrated compression condensing units and larger piston / screw Single and double-stage parallel units, ultra-low temperature air source heat pumps, air source heat pump drying units, water (ground) source heat pumps, etc.

After years of development, we not only have a complete product line, from chiller products and condenser products to different types of compressor units, which can meet the application requirements of different scales and different grades, and we attach great importance to the design support capacity of engineering refrigeration systems. The construction can provide professional technical support for the whole process of the project's pre-design, equipment selection, installation and commissioning to ensure the overall operation of the project. Based on the principle of customer-oriented, we have established a sound modern enterprise system and a comprehensive and effective quality management system, and have a pre-sales and after-sales service system that reflects promptly and thoughtfully.

"Kaidi" brand refrigeration products have a high reputation in China, and have won praise and recognition from customers. At the same time, they have also exported to Russia, Spain, Japan, South Korea, Malaysia, Vietnam and other countries, and have a place in foreign markets.
